Changzhou Victory Technology Co., LTD
2 Years
| Ask Lasest Price | |
| Brand Name : | Victory |
| Model Number : | GEA Series |
| Certification : | ISO SGS |
| Price : | 100 - 5000pieces $5-10 |
| Payment Terms : | T/T, L/C, Western Union, |
| Supply Ability : | 500000pcs per month |
| Delivery Time : | 15 days |

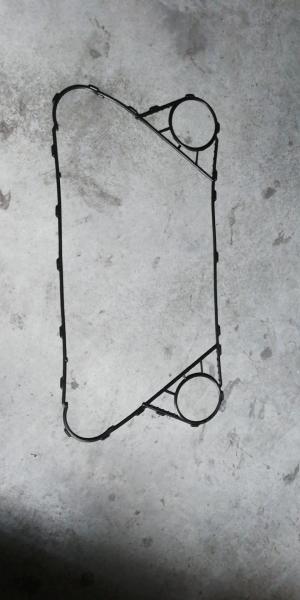

Heat Exchanger Gasket:
How to identify requirements for gasket in phe?
To identify the requirements for the gasket in a Plate Heat Exchanger (PHE), it is important to consider the following aspects:
Chemical Compatibility: Verify the gasket's compatibility with the fluids processed in the heat exchanger, ensuring that the gasket is resistant to the chemicals present.
Temperature Range: Consider the operating temperatures of the PHE to select a gasket that can withstand temperature variations without compromising the seal.
Operating Pressure: Evaluate the system's operating pressure to choose a gasket capable of withstanding pressure without leaking.
Durability and Lifespan: Take into account the durability and expected lifespan of the gasket, especially if the PHE is subject to demanding operational conditions.
Standards and Regulations: Ensure that the gasket meets the standards and regulations applicable to your application, ensuring compliance with safety and quality standards.
By considering these aspects when identifying the requirements for the gasket in a PHE, you can choose the appropriate gasket that meets the specific needs of your plate heat exchanger system.
Sealing gaskets can fill the gaps in the heat exchanger, maintain the sealing of the medium between pipes and equipment, prevent fluid leakage, and ensure the safe operation of the system. In addition, rubber pads can also play a buffering and shock-absorbing role, extending the service life of the equipment.
The main materials of rubber pads include rubber, graphite, plastic, etc. Their functions are:
1. Rubber: The rubber gasket has good elasticity and sealing properties, which can effectively prevent medium leakage and ensure the normal operation of the heat exchanger.
2. Graphite: Graphite rubber pad has the characteristics of high temperature resistance and corrosion resistance. It is suitable for high temperature and high pressure environments. It can effectively prevent medium leakage and extend the service life of the heat exchanger.
3. Plastic: Plastic gaskets are mainly used in occasions with special requirements, such as high media requirements. They can provide good corrosion resistance and ensure the safe operation of the heat exchanger.
| Brand/Maker | Model |
| TRANTER | GC008,GL13,GC16,GX18,GX26,GX42,GX51,GX60,GX64,GX85,GX91,GX100,GX140,GX145,GX180,GC16,GC26,GC42,GC51 |
| Item | plate heat exchanger gasket model list |
| Brand | Victory |
| Material | NBR HNBR EPDM HEPDM VITON FKM Silicone/CR/Neoprene |
| MOQ | 1 set |
| Package | carton |
| Warranty | one year |
| OEM | Supply |
| Material | applicable temp℃ fluid |
Application
| Material | Operating Temperature Range | Usage conditions |
| Nitrile Gaskets | ≤135℃ | Resistant to mineral, animal, vegetable oil and other non-polar media |
| Hydrogenated Nitrile Gaskets | -5℃-150℃ | Resistant to sulfur-containing crude oil, H2S-containing mixed media, high-temperature edible oil and other non-polar media |
| EPDM Gaskets | ≤160℃ | Resistant to hot water, water vapor, edible beverages, and high-temperature sterilization of milk |
| Solvent-based EPR Gaskets | -20℃-150℃ | Polar solvents and many other good solvents, such as lipid solvents. Dilute inorganic acids, alkalis, etc. |
| Universal Viton Gaskets | ≤180℃ | Non-polar mineral oil, lubricating oil and other alcohol-containing fuels |
| Special Fluorine Rubber Gaskets | 30℃-130℃ | Inorganic oxygen-containing acids such as high-concentration acids and bases |
Q&A
Q1: Does the gaskets product come with a warranty?
A1: Gasket are consumable accessories, and the replacement cycle is generally determined according to the specific conditions of use by the customer. It is related to the use environment, medium, temperature, etc. Usually we recommend purchasing more for replacement and backup purposes.
Q2: Is there a discount available for wholesale or bulk purchases?
Answer: Yes, we offer discounts for wholesale and bulk purchases. If you are interested in purchasing a large quantity of items or engaging in wholesale business, please contact our wholesale department or customer service team for information regarding wholesale discounts and minimum purchase quantities.
|
|
