Changzhou Victory Technology Co., LTD
2 Years
| Ask Lasest Price | |
| Brand Name : | Victory |
| Model Number : | VH15/VN15/VM15M |
| Certification : | ISO SGS |
| Price : | 20 - 500pieces $128 - 215 |
| Payment Terms : | T/T, L/C, Western Union, |
| Supply Ability : | 10000pcs per month |
| Delivery Time : | 15 days |

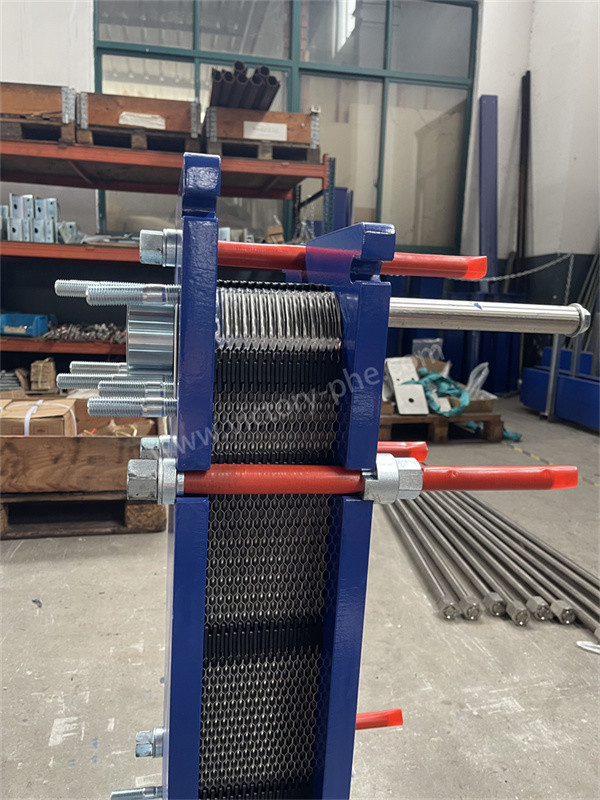

Plate Heat Exchanger With Gasket SS304 SS316L Heat Exchanger
PRODUCT DESCRIPTION
1. Plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. These exchangers are composed of multiple thin, slightly separated plates that have very large surface areas and fluid flow passages for heat transfer. The fluids can flow in counter-current or co-current arrangement, allowing for efficient heat transfer.
2. Plate heat exchangers are commonly used in HVAC, refrigeration, chemical processing, and food and beverage industries due to their high heat transfer efficiency, compact size, and ease of maintenance. They are often preferred over traditional shell-and-tube heat exchangers due to their lower cost, higher heat transfer rates, and flexibility in handling different fluids.
3.The design of plate heat exchangers allows for easy inspection, cleaning, and maintenance, making them a popular choice for various industrial and commercial applications.
| Model | VH15/VN15/VM15M |
| Plate Thickness | 0.5/0.6mm |
| Plate Hole Size | 150mm |
| Maximum Throughput | 380m3/h |
| Adapter Pipe For Large-diameter | DN150 |
| Working Pressure | 1.0/1.6MPa |
| Test Pressure | 1.3/2.1Mpa |
Model | Standard maximum flow rate m3/h | Maximum number of assembled pieces N | Clamping size A | Maximum length L1 |
VH15 | 380 | 253 | N*(3.8+X) | 2346 |
VN15 | 380 | 268 | N*(2.6+X) | 2046 |
VM15M | 380 | 415 | N*(4.0+X) | 3401 |
Product parameter of gasketed plate heat exchanger | |
Item | plate heat exchanger |
Brand | Victory |
Plate material | Titanium/Nickle/hastolly/Stainless steel 0.5mm 0.6mm 0.7mm 0.8mm 1mm |
Gasket material | NBR HNBR EPDM HEPDM VITON FKM Silicone |
Frame material | Painted Carbon steel |
Color of frame | blue or customed color |
Connection type | flange or thread |
Flange standard | ANSI ASME BS BA JIS DIN GB ISO |
Tightening bolt | M24 M30 M39 |
Design pressure | highest 20mpa, lowest 10Mpa |
Work pressure | normal 12.5Mpa |
MOQ | 1 set |
Package | polywood case |
Warranty | one year |
OEM | Can make replacement |
Applications
HVAC Systems: Plate heat exchangers are used in heating, ventilation, and air conditioning systems to transfer heat between the building's air and the circulated water or refrigerant.
Refrigeration: They are utilized in commercial and industrial refrigeration systems for cooling and heat transfer processes.
Food and Beverage Processing: Plate heat exchangers play a crucial role in food and beverage processing for pasteurization, heating, and cooling of liquids such as milk, juice, beer, and wine.
Chemical Processing: They are employed in chemical manufacturing processes for heating and cooling of various chemicals and fluids.
Q&A
Q: Does the product come with a warranty?
A: Yes, our products come with a warranty for a certain period. Detailed warranty information is usually included in the product packaging or manual. If you encounter any quality issues during use, please contact our customer service team promptly, and we will provide you with the necessary after-sales service.
Q: How long is the delivery time?
A: Normally around 15-20 days after payment.
|
|
