PRODUCT DESCRIPTION

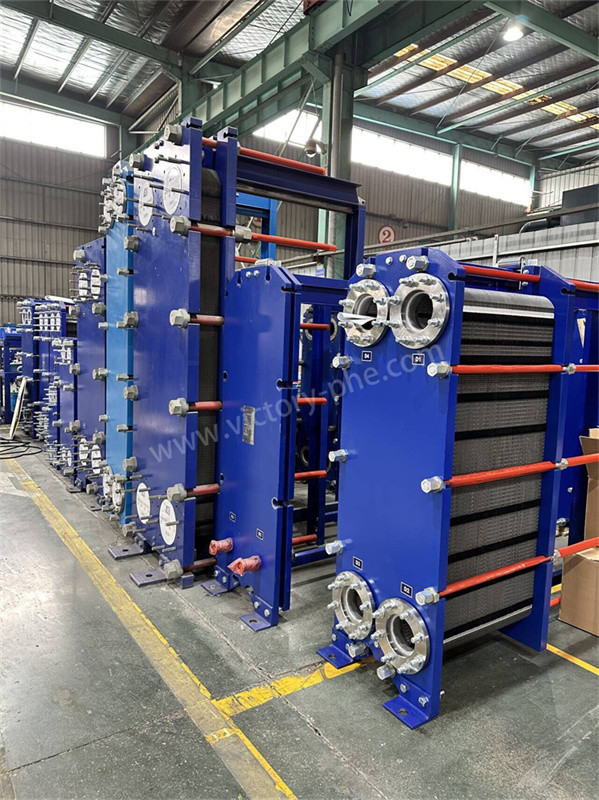

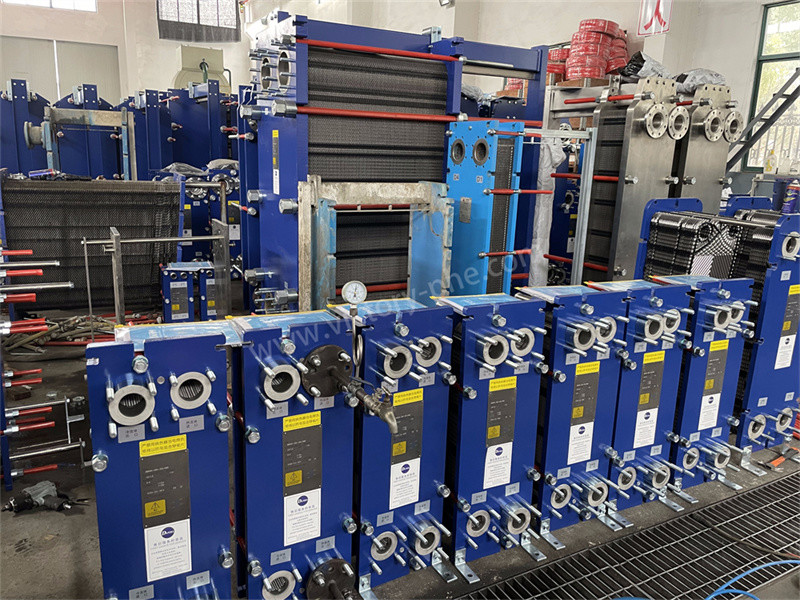

Titanium/Hastolly/Stainless Steel Material VN30/VN35/VN40/VN45 Grade Plate Heat Exchanger
Plate Heat Exchangers
In HVAC systems, plate heat exchangers contribute to improved energy efficiency, thermal comfort, and indoor air quality, making them essential components in modern heating, ventilation, and air conditioning applications.
2 Refrigeration: Plate heat exchangers are used in refrigeration systems to transfer heat between the refrigerant and the surrounding environment.
3 Food and beverage processing: Plate heat exchangers are used in the food and beverage industry for pasteurization, sterilization, and heating or cooling of products.
4 Power generation: Plate heat exchangers are used in power plants to transfer heat between different fluids in the system, such as cooling water and steam.
5 Chemical processing: Plate heat exchangers are used in chemical processing plants for heating, cooling, and condensing various chemicals and fluids.
6 Oil and gas industry: Plate heat exchangers are used for heat recovery and temperature control in oil and gas processing facilities.
| Model | Standard maximum flow rate m3/h | Maximum number of assembled pieces N | Clamping size A | Maximum length L1 |
| VN30 | 1600 | 615 | N*(3.2+X) | 4676.5 |
| Product parameter of gasketed plate heat exchanger | |
| Item | plate heat exchanger |
| Brand | Victory |
| Plate material | Titanium/Nickle/hastolly/Stainless steel 0.5mm 0.6mm 0.7mm 0.8mm 1mm |
| Gasket material | NBR HNBR EPDM HEPDM VITON FKM Silicone |
| Frame material | Painted Carbon steel |
| Color of frame | blue or customed color |
| Connection type | flange or thread |
| Flange standard | ANSI ASME BS BA JIS DIN GB ISO |
| Tightening bolt | M24 M30 M39 |
| Design pressure | highest 20mpa, lowest 10Mpa |
| Work pressure | normal 12.5Mpa |
| MOQ | 1 set |
| Package | polywood case |
| Warranty | one year |
| OEM | Can make replacement |
| Plate Material | Suitable Fluid |
| Stainless steel (SUS304, 316L etc.) | Pure water, River water, Edible salt water, Mineral oil |
| Titanium, Ti-pd | Brine, sea water, Salt water |
| SMO254 | Dilute sulphuric acid, Salt water solution, Inorganic aqueous solution |
| Ni | High temperature, High concentration of caustic soda |
| Hastelloy (C276, C22) | Concentrated sulfuric acid, Hydrochloric acid, Phosphoric acid |
| Main Body Gasket | Operating Temperature (℃) | Suitable Fluid |
| NBR | -15 ~ +135 | Water, Sea water, Mineral Salt, Brine |
| EPDM | -25 ~ +180 | Hot water, Vapour, Acid, Base |
| F26 | -25 ~ +230 | Acid, Base, Fluid |
| FTP | 0 ~ +160 | Concentrated acid, Base, High temperature oil, Vapour |
| Plate Type | Application |
| Lower Runner (B) | Temperature drop of heat-transfer medium too large, Temperature difference of logarithm too small |
| High Runner (H) | Request of viscosity, Fibroid, Pressure drop too small |
