Increased Heat Transfer Surface Area with Pattern Stamped APV/SPX Heat Exchanger Plates

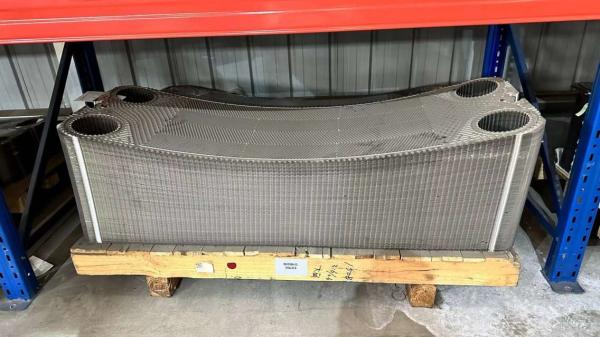

APV/SPX Heat Exchanger Plates

The stamping types of heat exchanger plates mainly include the following:

1. Flat stamping: Place the plate on the punch machine, and punch the plate through the punch to shape it into a flat plate. This type is suitable for producing flat sheets.

2. Corrugated plate stamping: stamping corrugated or corrugated structures on the surface of the plate to increase the surface area of ​​the plate and improve heat conduction efficiency. Corrugated plate stamping is suitable for heat exchanger applications where increased heat transfer area is required.

3. Fin plate stamping: Plate with fin structure is punched out on the surface of the plate to increase the surface area and improve heat exchange efficiency. Fin plate stamping is suitable for applications requiring efficient heat exchange.

The main difference is that different stamping types will form different structures on the surface of the plate, which will affect the heat transfer performance and efficiency of the plate. Flat plate stamping is suitable for general heat exchange needs, while corrugated plate and fin plate stamping are suitable for special applications that need to increase the heat transfer surface area and improve heat exchange efficiency.

Selecting the appropriate stamping type can be determined based on specific heat exchange needs and design requirements to achieve the best heat exchange effect.

Regular Heat Exchanger Plates Material

• AISI 304 is usually 0.4 or 0.5 mm thickness
• AISI 316 is always 0.5 and 0.6 mm
• 254 SMO (high alloy) typically 0.6 mm
• Titanium plates are always 0.5 and 0.6 mm
• Some have thicker plates (for high pressure applications)
• Some PHEs have 0.4 mm (low pressure operation)
• Hastelloy C-276 (nickel alloy) typically 0.6 mm

Applacations:

The application areas of heat exchanger plates are as follows:

1. Widely used for Hotels

2. Garment Shops

3. Building Material Shops

4. Machinery Repair Shops

5. Manufacturing Plant

6. Food & Beverage Factory

7. Farms, Restaurant,Retail, Food Shop

8. Printing Shops, Construction works

9. Energy & Mining, Food & Beverage Shops

Q&A

1. Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer of plate heat exchangers, plates, gaskets, plate mould with 18 years' experience.

Changzhou Victory Technology Co., Ltd. is a professional manufacturer of plate heat exchangers (PHE), heat exchanger gaskets (PHE GASKET), and heat exchanger plates (PHE PLATE).
Our company has introduced advanced design and production technology as well as advanced heat exchanger expertise at home and abroad, and has been committed to serving the HVAC, refrigeration, energy and power, metallurgy, chemical industry, pharmaceutical, food, electronics, shipbuilding and environmental treatment markets. , providing on-demand heat exchange solutions and all-round services. Friends are welcome to visit, guide and negotiate business.
At the same time, we are also a professional supplier and maintainer in the field of plate heat exchanger accessories (heat exchanger plates and heat exchanger gaskets). Able to provide the same products as many well-known brands at home and abroad (including: Alfa, ACCESSEN, GEA, TRANTER, SONDEX, FUNKE, Vicarb, etc.) Plate heat exchanger plates and gaskets in specified sizes.
No matter where you are, no matter what your special requirements are, Victory is willing to provide you with system solutions in the field of plate heat exchangers.
