Product Description

Quality control processing for the plate in PHE

Quality control processes for the plates in a Plate Heat Exchanger (PHE) are crucial to ensure the efficiency and reliability of the heat exchanger. Here are some key quality control processes for the plates in a PHE:

Material Inspection: Verify the quality and specifications of the plate material, ensuring it meets the required standards for corrosion resistance, thermal conductivity, and strength.

Dimensional Accuracy: Check the dimensions of the plates to ensure they meet design specifications and tolerances for proper fit and alignment within the heat exchanger.

Surface Finish Inspection: Inspect the surface finish of the plates to ensure they are smooth and free from defects that could affect heat transfer efficiency.

Pressure Testing: Conduct pressure tests on the plates to verify their ability to withstand the operating pressure without deformation or leaks.

Welding Quality: If the plates are welded together, inspect the welding quality to ensure proper bonding and integrity of the weld joints.

Heat Transfer Performance Testing: Evaluate the heat transfer performance of the plates by conducting tests to measure their thermal conductivity and efficiency in transferring heat between fluids.

Corrosion Resistance Testing: Test the plates for corrosion resistance to ensure they can withstand exposure to corrosive fluids and environments.

By implementing these quality control processes for the plates in a PHE, manufacturers can ensure that the heat exchanger operates effectively, efficiently, and reliably in various applications.

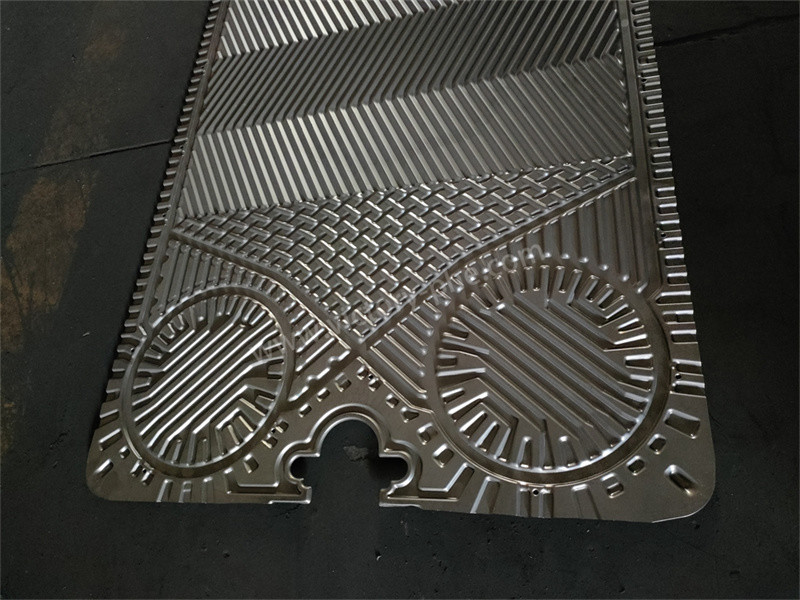

ACCESSEN Series Heat Exchanger Plates:

Selection of heat exchanger plate shape, size, and material is critical in designing an efficient heat exchanger. Here are some key points to consider in selecting the shape, size and material of a heat exchanger plate:

1. Plate Shape : The plate shape chosen must be appropriate to the application requirements and operational conditions. Proper shape can increase heat exchange efficiency and optimize fluid flow.

2. Plate Size : The plate size should be selected taking into account the surface area required for efficient heat exchange. Proper sizing will ensure optimal heat exchanger performance.

3. Plate Material : Selection of plate material is critical to ensure reliability, corrosion resistance and good performance in the long term. The plate material must be suitable for the type of fluid to be processed and the operational conditions.

4. Operational Conditions : Consider temperature, pressure, fluid type, and other operational conditions in selecting plate shape, size, and material. This will help determine the most appropriate plate for a particular application.

5. Cost and Efficiency : Consider the cost of manufacturing, installing, and maintaining a plate heat exchanger in relation to the desired efficiency. Choose a combination of plate shapes, sizes and materials that provides the optimal balance of performance and cost.

By considering the above factors, you can make the right choice in selecting the heat exchanger plate shape, size and material to ensure optimal performance according to your application needs.

• AISI 304 is usually 0.4 or 0.5 mm thickness
• AISI 316 is always 0.5 and 0.6 mm
• 254 SMO (high alloy) typically 0.6 mm
• Titanium plates are always 0.5 and 0.6 mm
• Some have thicker plates (for high pressure applications)
• Some PHEs have 0.4 mm (low pressure operation)
• Hastelloy C-276 (nickel alloy) typically 0.6 mm

Applacations

Products are mainly suitable for ACCESSEN/GEA (Kelvion)/ APV/ Sondex/ Tranter/ Hisaka/ API/ Funke/ Vicarb/ Mueller/ SWEP/ Fischer/ AGC/ Thermalwave/ ITT/ LHE/ DHP, etc.

Q&A:

1. Q: What specific requirements do you have for the replacement plate in your heat exchanger?

A: By understanding your specific requirements, we can tailor the replacement plate to meet your exact needs.

2. Q: Are there any special materials or coatings you prefer for the replacement plate?

A: By offering a range of materials and coatings options, we can customize the replacement plate to suit your preferences.

3. Q: Do you have any size or design preferences for the replacement plate?

A: We can customize the size and design of the replacement plate to fit your heat exchanger perfectly.

4. Q: Would you like any additional features or modifications incorporated into the replacement plate?

A: We can discuss adding any additional features or modifications to enhance the performance of the replacement plate.

5. Q: How can we assist you further in ensuring that the replacement plate meets your specific requirements and expectations?

A: We are committed to providing personalized service and support throughout the replacement process to ensure your complete satisfaction.

Changzhou Victory Technology Co., Ltd. is a professional manufacturer of plate heat exchangers (PHE), heat exchanger gaskets (PHE GASKET), and heat exchanger plates (PHE PLATE).
Our company has introduced advanced design and production technology as well as advanced heat exchanger expertise at home and abroad, and has been committed to serving the HVAC, refrigeration, energy and power, metallurgy, chemical industry, pharmaceutical, food, electronics, shipbuilding and environmental treatment markets. , providing on-demand heat exchange solutions and all-round services. Friends are welcome to visit, guide and negotiate business.
At the same time, we are also a professional supplier and maintainer in the field of plate heat exchanger accessories (heat exchanger plates and heat exchanger gaskets). Able to provide the same products as many well-known brands at home and abroad (including: Alfa, ACCESSEN, GEA, TRANTER, SONDEX, FUNKE, Vicarb, etc.) Plate heat exchanger plates and gaskets in specified sizes.
No matter where you are, no matter what your special requirements are, Victory is willing to provide you with system solutions in the field of plate heat exchangers.
