Product Description

Anti-Corrosion Heat Exchanger Plate For APV SPX//ACCESSEN/GEA In Stainless Steel

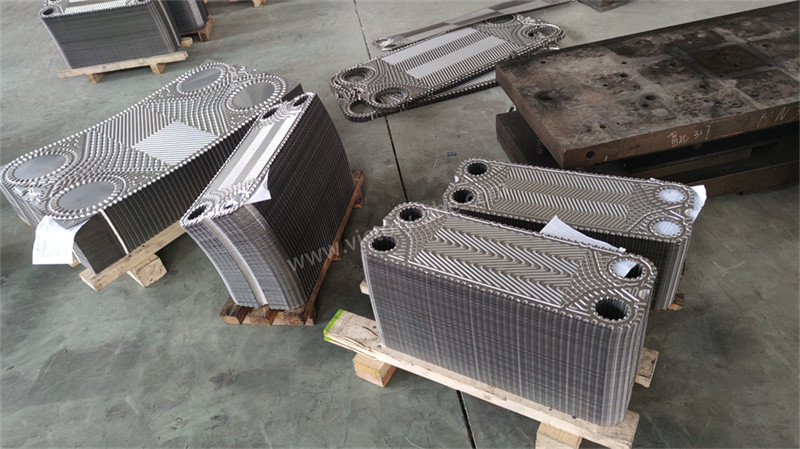

APV/SPX Heat Exchanger Plates

1. The heat exchanger plates have four corner holes through which the two fluids involved in heat transfer pass. The metal plates are installed within a frame that has a fixed plate and a movable clamping plate on one side, and they are tightened using clamping bolts. The plates are equipped with sealing gaskets, which seal the fluid channels and guide the fluids to flow alternately into their respective passages, facilitating heat exchange. The flow rate, physical properties, pressure drop, and temperature difference of the fluids determine the number and size of the plates required for the heat exchanger.
2. Heat exchanger plates are manufactured using extremely precise molds for a one-time stamping process. Only plates that are formed in a single step possess the same level of precision. This ensures uniform metal-to-metal contact between the plates, allowing plate heat exchangers to operate effectively under high pressures and withstand pressure shocks from the system.

3. Products are mainly suitable for /ACCESSEN/GEA (Kelvion)/ APV/ Sondex/ Tranter/ Hisaka/ API/ Funke/ Vicarb/ Mueller/ SWEP/ Fischer/ AGC/ Thermalwave/ ITT/ LHE/ DHP, etc.

Applacations

Plate heat exchanger plate thickness configuration

• AISI 304 is usually 0.4 or 0.5 mm thickness
• AISI 316 is always 0.5 and 0.6 mm
• 254 SMO (high alloy) typically 0.6 mm
• Titanium plates are always 0.5 and 0.6 mm
• Some have thicker plates (for high pressure applications)
• Some PHEs have 0.4 mm (low pressure operation)
• Hastelloy C-276 (nickel alloy) typically 0.6 mm

Operating Principle:

• plate heat exchanger involves the stacking of metal plates with a certain corrugated shape to create a new type of highly efficient heat exchanger. The structure of the plate heat exchanger includes gaskets, clamping plates (movable end plate, fixed end plate), and a frame (upper and lower guide rods, front support pillar). The plates are sealed and guided by sealing gaskets, creating separate channels for the cold and hot fluids. The cold and hot fluids flow through their respective channels and exchange heat with the adjacent plates to achieve the desired temperature.
• Each plate has openings at its four corners, and when assembled into a plate bundle, they form distribution and collection channels for the fluids. After the heat exchange between the cold and hot fluids, they return to their respective collection channels and circulate for reuse.

Changzhou Victory Technology Co., Ltd. is a professional manufacturer of plate heat exchangers (PHE), heat exchanger gaskets (PHE GASKET), and heat exchanger plates (PHE PLATE).
Our company has introduced advanced design and production technology as well as advanced heat exchanger expertise at home and abroad, and has been committed to serving the HVAC, refrigeration, energy and power, metallurgy, chemical industry, pharmaceutical, food, electronics, shipbuilding and environmental treatment markets. , providing on-demand heat exchange solutions and all-round services. Friends are welcome to visit, guide and negotiate business.
At the same time, we are also a professional supplier and maintainer in the field of plate heat exchanger accessories (heat exchanger plates and heat exchanger gaskets). Able to provide the same products as many well-known brands at home and abroad (including: Alfa, ACCESSEN, GEA, TRANTER, SONDEX, FUNKE, Vicarb, etc.) Plate heat exchanger plates and gaskets in specified sizes.
No matter where you are, no matter what your special requirements are, Victory is willing to provide you with system solutions in the field of plate heat exchangers.
