0.5mm 0.6mm Thickness SS304 SS316 Vicarb Heat Exchanger Plate For Cooling And Condensation

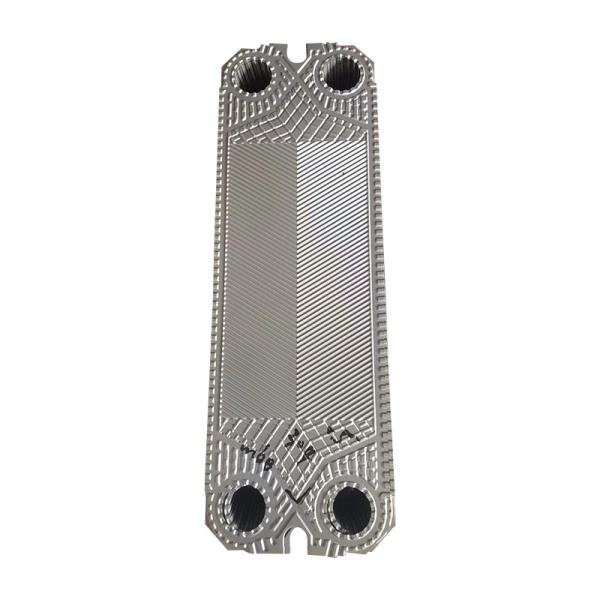

Vicarb Heat Exchanger Plates

1. Heat exchanger plates are essential components consisting of metal plates and sealing gaskets. The metal plates serve as the primary heat transfer elements. They are designed with corrugated patterns on their surfaces, sealing grooves along the plate edges, and corner holes around them. The sealing gaskets are installed in the grooves to ensure a tight seal between the plates, preventing any fluid leakage. Additionally, the gaskets also seal some of the corner holes, allowing the two fluids to flow alternatively on both sides of the thin plates for efficient heat exchange.
2. The plate heat exchanger plates are typically printed with corrugations, commonly available in two styles: "herringbone" and "horizontal straight". The herringbone style offers advantages such as higher pressure resistance, improved heat transfer coefficient, and increased fluid resistance when compared to the horizontal straight style. These features make the herringbone-style plates suitable for applications requiring higher performance and efficiency.

Plate heat exchanger plate thickness configuration

• AISI 304 is usually 0.4 or 0.5 mm thickness
• AISI 316 is always 0.5 and 0.6 mm
• 254 SMO (high alloy) typically 0.6 mm
• Titanium plates are always 0.5 and 0.6 mm
• Some have thicker plates (for high pressure applications)
• Some PHEs have 0.4 mm (low pressure operation)
• Hastelloy C-276 (nickel alloy) typically 0.6 mm

Types and materials of plate heat exchanger plates:

Corner heat exchanger plates
The shape of this plate is similar to a rhombus, with sharp angles at the corners. The gaps between the angular plates can form heat exchange channels.

Corrugated heat exchanger plates
The surface of this plate is wavy, which improves heat exchange efficiency by increasing the surface area. Corrugated sheets are commonly used in high temperature, high pressure and high flow applications.

Hook type heat exchanger plates
This kind of plate is suspended inside the plate heat exchanger through a hook on one side, and the other side is free. Hook-type plates are often used in applications that require frequent cleaning because they can be easily removed.

Stainless steel heat exchanger plates
Stainless steel sheets are the most common choice because they offer good corrosion resistance and strength.

Titanium heat exchanger plates
Titanium plates are often used for heat exchange with highly corrosive media because of their high corrosion resistance and chemical inertness.

Nickel Alloys heat exchanger plates

Nickel alloy sheets are often used in high temperature and pressure applications because of their high heat resistance and strength.

Other metal materials heat exchanger plates
Depending on the specific application scenario and medium characteristics, plates made of copper, aluminum, steel and other metal materials can also be selected.

Applacations

Changzhou Victory Technology Co., Ltd. is a professional manufacturer of plate heat exchangers (PHE), heat exchanger gaskets (PHE GASKET), and heat exchanger plates (PHE PLATE).
Our company has introduced advanced design and production technology as well as advanced heat exchanger expertise at home and abroad, and has been committed to serving the HVAC, refrigeration, energy and power, metallurgy, chemical industry, pharmaceutical, food, electronics, shipbuilding and environmental treatment markets. , providing on-demand heat exchange solutions and all-round services. Friends are welcome to visit, guide and negotiate business.
At the same time, we are also a professional supplier and maintainer in the field of plate heat exchanger accessories (heat exchanger plates and heat exchanger gaskets). Able to provide the same products as many well-known brands at home and abroad (including: Alfa, ACCESSEN, GEA, TRANTER, SONDEX, FUNKE, Vicarb, etc.) Plate heat exchanger plates and gaskets in specified sizes.
No matter where you are, no matter what your special requirements are, Victory is willing to provide you with system solutions in the field of plate heat exchangers.
