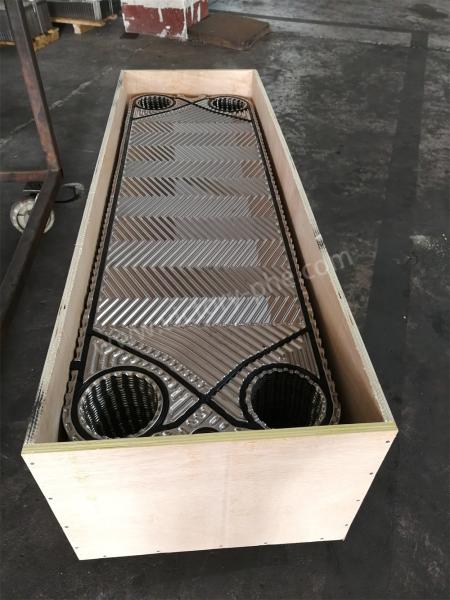

Heat Exchanger Plates
Premium Heat Exchanger Gasket Plate Sheets In Stainless Steel, Titanium, And Nickel Alloy For Accurate Vicarb
Heat exchanger plates are produced by applying pressure or stamping on materials like stainless steel, titanium, nickel alloys, and some plastics. Material selection depends on factors such as heat conductivity, corrosion resistance, and compatibility with the fluids used. Commonly used materials include stainless steel (corrosion-resistant and durable), titanium (exceptional corrosion resistance), nickel alloys (resistant to high temperatures and aggressive chemicals), and copper alloys (high thermal conductivity).
Different materials used in heat exchanger plates offer advantages and disadvantages:
- Stainless Steel: Good corrosion resistance, durability, and cost-effectiveness. However, it has lower thermal conductivity compared to some other materials.
- Titanium: Excellent corrosion resistance, lightweight, and high strength-to-weight ratio. However, it is more expensive compared to certain other materials.
- Nickel Alloys: High-temperature resistance and corrosion resistance. However, they can be costlier and may not be suitable for all applications.
- Copper Alloys: Superior thermal conductivity for efficient heat transfer. However, they can be vulnerable to corrosion in specific environments.
The suitability of these materials depends on the specific requirements and operating conditions of the heat exchanger.
| Brand | Model |
| Vicarb | V4,V8,VU8,V13,V20,V28,V45,V60 |
| Material | Specification |
| Stainless Steel | SUS304 316 316L 310S 904 |
| Titanium and titanium-palladium alloy | TAi TAi-Pd |
| Hastelloy | C276 D205 B2G |
| Nickel | Ni200 Ni201 |
| Molybdenum | 254 |
Heat Exchanger Plates material
1. Stainless steel, including SUS304 and SUS316L, is well-suited for applications involving purified water, river water, food oil, and mineral oil due to its compatibility and resistance to corrosion.
2. Industrial pure titanium and titanium-palladium alloy, such as Titanium and Palladium, are highly recommended for use with sea water, salt water, and salt compounds due to their exceptional corrosion resistance.
3. Hastelloy alloy is specifically designed for handling concentrated sulfuric acid, hydrochloric acid, and phosphoric acid, making it an excellent choice for applications requiring resistance to these corrosive substances.
4. Nickel is a suitable material for high-temperature and high-concentration caustic soda applications due to its ability to withstand harsh conditions at elevated temperatures and concentrations.
Q&A
1. Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer of plate heat exchangers, plates, gaskets, plate mould with 18 years' experience.
Q: Can I customize samples of heat exchanger plates?
A: Yes,we welcome sample order to test and check quality.
|
|
